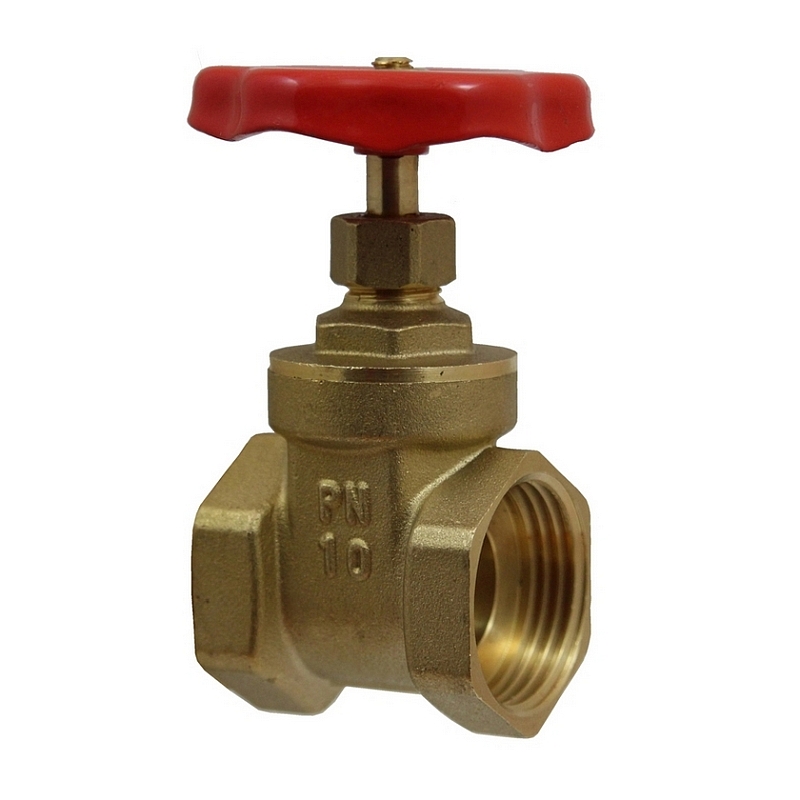

Zasuwa wodna mosiężna

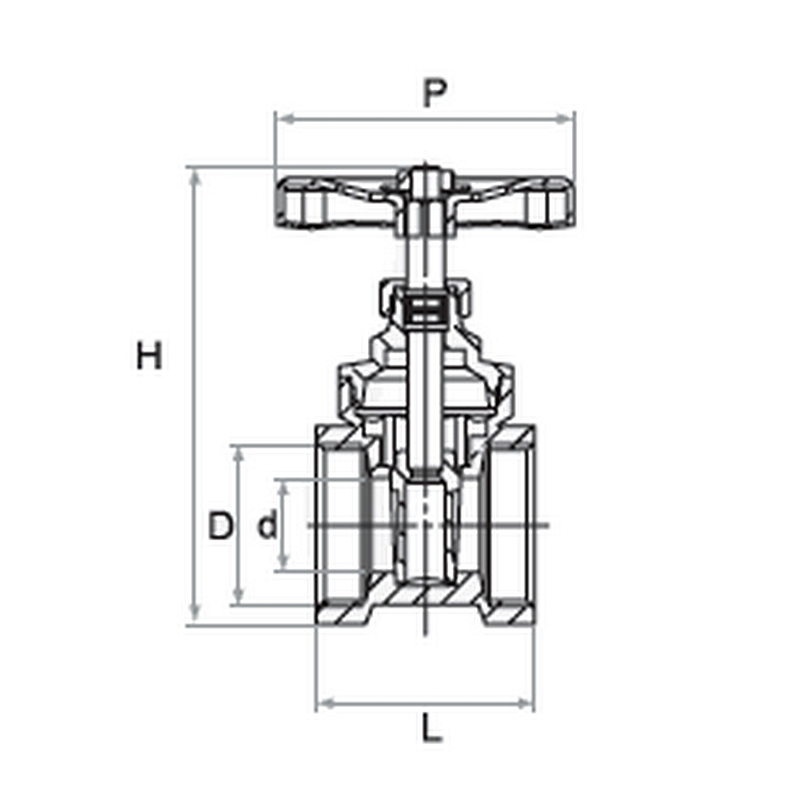

| Indeks | DN mm | D (cal) | d (mm) | H (mm) | L (mm) | P(mm) | ilość m/d |
|---|---|---|---|---|---|---|---|
| 0200.380 | 15 | G 1/2" | 12 | 73 | 43 | 53 | 15/75 |
| 0200.381 | 20 | G 3/4 " | 14 | 77 | 46,5 | 59 | 5/25 |
| 0200.382 | 25 | G 1" | 19 | 86 | 51 | 72 | 5/20 |
| 0200.383 | 32 | G 1 1/4" | 24 | 100 | 57 | 80 | 6/36 |
| 0200.384 | 40 | G 1 1/2" | 29 | 110,5 | 60 | 90 | 4/24 |
| 0200.385 | 50 | G 2" | 35 | 126,5 | 66 | 100 | 3/18 |
